Duct Free Systems

Duct free heating and cooling systems make your home’s individual rooms or other small spaces more comfortable. Remember, just like whole-home systems, the higher the SEER/SEER2 and HSPF/HSPF2 ratings, the more efficient they will be.

The DOE’s regional breakdown by state is as follows:

North
- 14.0 SEER/ 13.4 SEER2
- 8.8 HSPF/7.5 HSPF2
Southeast
- 15.0 SEER/ 14.3 SEER2
- 12.2 EER/11.7 EER2
- 8.8 HSPF/7.5 HSPF2
Southwest
- 15.0 SEER/ 14.3 SEER2
- 12.2 EER/11.7 EER2
- 8.8 HSPF/7.5 HSPF2

SEER/SEER2 And HSPF/HSPF2

SEER2 is an updated rating standard introduced by the DOE. SEER2 standards are intended to provide a better gauge of typical home operating conditions whereas the older SEER rating utilized very precise protocols to determine ratings in ideal conditions. SEER2 standards include updated testing means that give a better indication of how a unit will operate in the real world.

HSPF2 is the newest type of rating system that expands on the basic HSPF scale.

Much like miles-per-gallon for a car, SEER/SEER2, EER/EER2 and HSPF/HSPF2 offer an easy way to compare efficiencies of different products – the higher the rating, the more efficient the unit. Just be sure you are comparing either SEER vs SEER or SEER2 vs SEER2 (same for EER/EER2 and HSPF/HSPF2).

EER2 vs. SEER2

EER2 and SEER2 both evaluate an air conditioner’s energy efficiency, but they’re concerned with two different types of temperature conditions:

EER2 measures an air conditioner’s efficiency at the peak cooling temperature of 95°F.
SEER2 measures an air conditioner’s efficiency throughout an entire cooling season, with temperatures ranging from 65°F to 104°F.

Call Schaef Air Heating & Air Conditioning To Find Out If Duct-Free Systems Are Right For You.

We offer a variety of through-the-wall packaged terminal air conditioners (PTAC) and duct free heating and cooling systems to meet any individual room’s needs. Call us now at (909) 944-5111.

Ductless Outdoor Heat Pumps

Infinity® Mini Split Heat Pump with Basepan Heater

Model Family: 37MPRA
Purpose: Heat & Cool
Zone Capability: Single- Zone
Efficiency SEER2: Up to 35.1 SEER2
Efficiency EER2: N/A
Efficiency HSPF2: Up to 30 HSPF2
Energy Star Rated: ENERGY STAR® certified
Refrigerant Type: Puron Advance
Sound Level: As low as 57 decibels
Compressor: Inverter Compressor
Factory Warranty Parts: 10-year parts limited warranty to the original purchasing owner upon timely registration or Consumer Choice Warranty
Factory Warranty Compressor:
Manufacturer’s Stated Benefits: Built-in basepan heater Auto-restart function High Heat Capability Humidity Control Heavy-gauge, galvanized steel construction

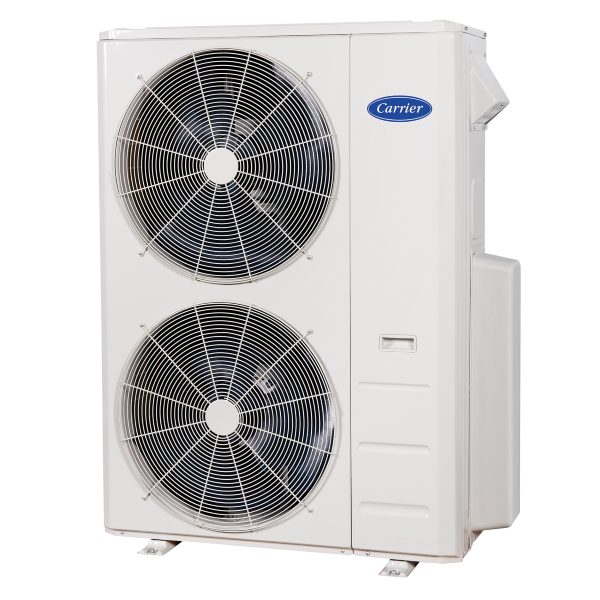

Performance™ Multi-Zone High-Heat Heat Pump with Basepan Heater

Model Family: 37MGRA
Purpose: Heat and Cool
Zone Capability: Multi-zone
Efficiency SEER2: Up to 25.2 SEER2
Efficiency EER2: N/A
Efficiency HSPF2: Up to 10.4 HSPF2
Energy Star Rated: Select sizes ENERGY STAR® certified
Refrigerant Type: Puron Advance
Sound Level: as low as 59.5 decibels
Compressor: Inverter
Factory Warranty Parts: 10-year parts limited warranty upon timely registration or Consumer Choice Warranty
Factory Warranty Compressor: 10-year parts limited warranty upon timely registration or Consumer Choice Warranty
Manufacturer’s Stated Benefits: Humidity Control Built-In Basepan Heater Built-In Occupancy Sensor

Performance™ Mini Split Heat Pump

Model Family: 37MARA
Purpose: Heat and Cool
Zone Capability: Single zone
Efficiency SEER2: Up to 26 SEER2
Efficiency EER2: N/A
Efficiency HSPF2: Up to 13.9 HSPF2
Energy Star Rated: Select sizes ENERGY STAR® certified
Refrigerant Type: Puron Advance
Sound Level: as low as 52.5 decibels
Compressor: inverter driven compressor
Factory Warranty Parts: 10-Year Parts Limited Warranty with Registration or Consumer Choice Warranty
Factory Warranty Compressor: N/A
Manufacturer’s Stated Benefits: Humidity Control Built-in basepan heater Anti-corrosive fin coating

Comfort™Outdoor Ductless Single-Zone Heat Pump Unit

Model Family: 37MHRAQ
Purpose: Heat & Cool
Zone Capability: Single-zone
Efficiency SEER2: Up to 22.4 SEER2
Efficiency EER2: N/A
Efficiency HSPF2: Up to 9.4 HSPF2
Energy Star Rated: Select sizes ENERGY STAR® certified
Refrigerant Type: Puron Advance
Sound Level: As low as 52.5 decibels
Compressor: Inverter
Factory Warranty Parts: 10-year parts limited warranty to the original purchasing owner upon timely registration or Consumer Choice Warranty
Factory Warranty Compressor: N/A
Manufacturer’s Stated Benefits:

Ductless High Wall Indoor Heat Pumps

Infinity® High Wall Indoor Unit

Model Family: 45MPHA
Purpose: Heat & Cool
Zone Capability: Single Zone
Efficiency SEER2: Dependent upon outdoor unit pairing
Efficiency EER2: Dependent upon outdoor unit pairing
Efficiency HSPF2: Dependent upon outdoor unit pairing
Matching Outdoor Unit: Single-Zone: 37MPRA, 37MAHA, 37MBHA
Matching Outdoor Unit: Multi-Zone:
Energy Star Rated: All sizes ENERGY STAR® certified
Refrigerant Type: Puron Advance
Number of Fan Speeds: Fully modulating fan speeds
Sound Level: As low as16 decibels
Wireless Remote: Yes
Factory Warranty Parts: 10-year parts limited warranty to the original purchasing owner upon timely registration or Consumer Choice Warranty
Manufacturer’s Stated Benefits: Relative Humidity Sensor High Heat Capability Built-In Basepan Heater Built-In Wi-Fi® for Smartphone Control Built-In Occupancy Sensor

Comfort™ Indoor Ductless High Wall Heat Pump Unit

Model Family: 45MAHA
Purpose: Heat & Cool
Zone Capability: Single & Multi-Zone
Efficiency SEER2: Dependent upon outdoor unit pairing
Efficiency EER2: Dependent upon outdoor unit pairing
Efficiency HSPF2: Dependent upon outdoor unit pairing
Matching Outdoor Unit: Single-Zone: 37MAHAQ
Matching Outdoor Unit: Multi-Zone:
Energy Star Rated: Select sizes ENERGY STAR® certified
Refrigerant Type: Puron Advance
Number of Fan Speeds: 3 indoor fan speeds
Sound Level: As low as 16 decibels
Wireless Remote: Yes
Factory Warranty Parts: 10-year parts limited warranty to the original purchasing owner upon timely registration or Consumer Choice Warranty
Manufacturer’s Stated Benefits: Follow Me (senses temperature at handheld remote) Modern, flat panel indoor unit in white

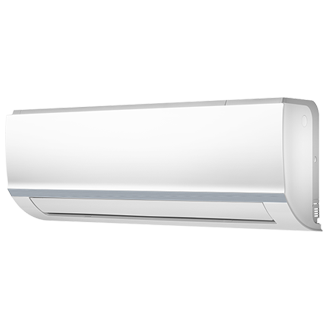

Performance™ Mini Split Heat Pump

Model Family: 40MHHAQ
Purpose: Heat & Cool
Zone Capability: Single & Multi-Zone
Efficiency SEER2: Dependent upon outdoor unit pairing
Efficiency EER2: Dependent upon outdoor unit pairing
Efficiency HSPF2: Dependent upon outdoor unit pairing
Matching Outdoor Unit: Single-Zone: 38MHRCQ
Matching Outdoor Unit: Multi-Zone:
Energy Star Rated: No
Refrigerant Type: Puron®
Number of Fan Speeds: Four fan speeds
Sound Level: As low as 27 decibels
Wireless Remote: Yes
Factory Warranty Parts: 10-year parts limited warranty to the original purchasing owner upon timely registration or Consumer Choice Warranty
Manufacturer’s Stated Benefits: Auto-restart function Turbo Mode Sleep Mode Follow Me (senses temperature at handheld remote) Heating Setback (46° F Heating Mode) Up-down louver control (fixed or swing) Filter is removable from the top Improved serviceability with easy access to fan and electrical connections Aluminum Blue Hydrophilic pre-coated fins Attractively styled, high−impact polystyrene.

Ductless High Wall Indoor Air Conditioners

Comfort™ High Wall Indoor Unit

Model Family: 45MHHAC
Purpose: Cool Only
Zone Capability: Single-Zone
Efficiency SEER2: Dependent upon outdoor unit pairing
Efficiency EER2: Dependent upon outdoor unit pairing
Matching Outdoor Unit: Single-Zone: 37MHRAC
Matching Outdoor Unit: Multi-Zone: N/A
Energy Star Rated: Select sizes ENERGY STAR® certified
Refrigerant Type: Puron Advance
Number of Fan Speeds: Four fan speeds
Sound Level: As low as 19 decibels
Wireless Remote: Yes
Factory Warranty Parts: 10-year parts limited warranty to the original purchasing owner upon timely registration or Consumer Choice Warranty
Manufacturer’s Stated Benefits: Auto-restart function Up-down louver control (fixed or swing) Improved serviceability with easy access to fan and electrical connections Attractively styled, high−impact polystyrene.

Ductless Outdoor Air Conditioners

Comfort™ Series Single Zone Mini Split Air Conditioner - Cooling Only

Model Family: 37MHRAC
Purpose: Cool Only
Efficiency SEER2: Up to 22.2 SEER2
Efficiency EER2: N/A
Zone Capability: Single – Zone
Energy Star Rated: No
Refrigerant Type: Puron Advance
Sound Level: Select sizes ENERGY STAR® certified
Compressor: Rotary Inverter
Factory Warranty Parts: 10-year parts limited warranty with registration
Factory Warranty Compressor: 10-year parts limited warranty with registration
Manufacturer’s Stated Benefits: Anti-corrosive fin coating Auto-restart function Heavy-gauge, galvanized steel construction Primed and coated with a 100% coverage, baked-enamel finish in white

Carrier Alternate Indoor Ductless Units

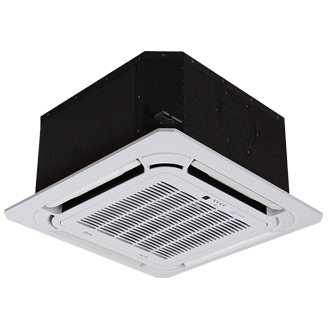

Performance™ Cassette Indoor Unit

Model Family: 40MBCQ
Purpose: Heat & Cool
Zone Capability: Single & Multi-Zone
Efficiency SEER2: Dependent upon outdoor unit pairing
Efficiency EER2: Dependent upon outdoor unit pairing
Efficiency HSPF2: Dependent upon outdoor unit pairing
Matching Outdoor Unit: Single-Zone: 38MARB
Matching Outdoor Unit: Multi-Zone: 38MGRB
Energy Star Rated: Select sizes are ENERGY STAR® certified based on outdoor unit pairing
Refrigerant Type: Puron®
Number of Fan Speeds: Three fan speeds
Sound Level: As low as 34 decibels
Wireless Remote: Yes
Factory Warranty Parts: 10-year parts limited warranty to the original purchasing owner upon timely registration or Consumer Choice Warranty
Manufacturer’s Stated Benefits: Modes: Cool, Heat, Dry, Fan, Auto Vertical or horizontal installation Auto-restart function Louver control (fixed or swing) Follow Me (senses temperature at handheld remote) Heating Setback (46° F Heating Mode) Built-in condensate lift pump Aluminum Blue Hydrophilic pre-coated fins

Performance™ Ducted Indoor Unit

Model Family: 45MBDA
Purpose: Heat & Cool
Zone Capability: Single & Multi-Zone
Efficiency SEER2: Dependent upon outdoor unit pairing
Efficiency EER2: Dependent upon outdoor unit pairing
Efficiency HSPF2: Dependent upon outdoor unit pairing
Matching Outdoor Unit: Single-Zone: 37MARA
Matching Outdoor Unit: Multi-Zone: 37MGRA
Energy Star Rated: Select sizes are ENERGY STAR® certified based on outdoor unit pairing
Refrigerant Type: Puron Advance
Number of Fan Speeds: 3 Fan Speeds
Sound Level: As low as 22 decibels
Wireless Remote: Yes
Factory Warranty Parts: 10-year parts limited warranty to the original purchasing owner upon timely registration or Consumer Choice Warranty
Manufacturer’s Stated Benefits: Modes: Cool, Heat, Dry, Fan, Auto Vertical or horizontal installation Rear or bottom return Outside air intake Built-in condensate lift pump Follow Me (senses temperature at handheld remote)

Performance™ Floor Console Indoor Unit

Model Family: 40MBFQ
Purpose: Heat & Cool
Zone Capability: Single & Multi-Zone
Efficiency SEER2: Dependent upon outdoor unit pairing
Efficiency EER2: Dependent upon outdoor unit pairing
Efficiency HSPF2: Dependent upon outdoor unit pairing
Matching Outdoor Unit: Single-Zone: 38MARB
Matching Outdoor Unit: Multi-Zone: 38MGRB
Energy Star Rated: Select sizes are ENERGY STAR® certified based on outdoor unit pairing
Refrigerant Type: Puron®
Number of Fan Speeds: Three fan speeds
Sound Level: As low as 34 decibels
Wireless Remote: Yes
Factory Warranty Parts: 10-year parts limited warranty to the original purchasing owner upon timely registration or Consumer Choice Warranty
Manufacturer’s Stated Benefits: Modes: Cool, Heat, Dry, Fan, Auto Auto-restart function Louver control (fixed or swing) Follow Me (senses temperature at handheld remote) Heating Setback (46° F Heating Mode) Aluminum Blue Hydrophilic pre-coated fins

Carrier Commercial Outdoor Heat Pump Ductless Units

Toshiba Carrier LT. Commercial Ductless Heat Pump

Model Family: RAVBAT2
Purpose: Heat & Cool
Zone Capability: Single Zone
Efficiency SEER2: Up to 26 SEER2
Efficiency EER2: N/A
Efficiency HSPF2: Up to 12 HSPF2
Energy Star Rated: Select Models ENERGY STAR® certified
Refrigerant Type: Puron Advance
Sound Level: As low as 48 decibels
Compressor: Inverter Compressor
Factory Warranty Parts: 10-year parts limited warranty to the original purchasing owner upon timely registration or Consumer choice Warranty
Factory Warranty Compressor: N/A
Manufacturer’s Stated Benefits: Max total piping length up to 246 ft Four different styles of indoor units System line up from 1 to 4-ton capacity

Performance™ Single-Zone Light Commercial Mini Split Heat Pump

Model Family: 37MBRA
Purpose: Heat & Cool
Zone Capability: Single Zone
Efficiency SEER2: Up to 20 SEER2
Efficiency EER2: N/A
Efficiency HSPF2: Up to 10.4 HSPF2
Energy Star Rated: Not ENERGY STAR® certified
Refrigerant Type: Puron Advance
Sound Level: As low as 62.5 decibels
Compressor: Inverter Compressor
Factory Warranty Parts: 10-year parts limited warranty to the original purchasing owner upon timely registration or Consumer Choice Warranty
Factory Warranty Compressor: 10-year parts limited warranty to the original purchasing owner upon timely registration or Consumer Choice Warranty
Manufacturer’s Stated Benefits: Built-in Basepan Heater Humidity Control Built-In Occupancy Sensor1 Heavy-gauge, galvanized steel construction Primed and coated with a 100% coverage, baked-enamel finish in white

Carrier Commercial Indoor Heat Pump Ductless Units

Toshiba Carrier High Wall Indoor Unit

Model Family: RAVKR2
Purpose: Heat & Cool
Zone Capability: Single zone
Efficiency SEER2: Dependent upon outdoor unit pairing
Efficiency EER2: Dependent upon outdoor unit pairing
Efficiency HSPF2: Dependent upon outdoor unit pairing
Matching Outdoor Unit: Single-Zone: RAVAT2
Matching Outdoor Unit: Multi-Zone:
Energy Star Rated: Not ENERGY STAR® certified
Refrigerant Type: Puron
Number of Fan Speeds: Three indoor unit fan speeds
Sound Level: As low as 38 decibels
Wireless Remote: Yes
Factory Warranty Parts: 10-year parts limited warranty to the original purchasing owner upon timely registration or Consumer Choice Warranty
Manufacturer’s Stated Benefits: Modes: Cool, Heat, Dry, Fan, Auto Motorized louver allows fixed or oscillating motion Turbo Mode One touch memory Sleep Mode Washable filter with on-unit filter maintenance indicator System diagnostics Up to 24-hour start/stop timer Indoor coil freeze protection Modern, flat panel indoor unit in white

Toshiba Carrier Cassette Indoor Unit

Model Family: RAVUT2
Purpose: Heat & Cool
Zone Capability: Single Zone
Efficiency SEER2:
Efficiency EER2:
Efficiency HSPF2:
Matching Outdoor Unit: Single-Zone: RAVAT2
Matching Outdoor Unit: Multi-Zone:
Energy Star Rated: Select sizes ENERGY STAR® certified
Refrigerant Type: Puron
Number of Fan Speeds: Three indoor unit fan speeds
Sound Level: As low as 32 decibels
Wireless Remote: Yes
Factory Warranty Parts: 10-year parts limited warranty to the original purchasing owner upon timely registration or Consumer Choice Warranty
Manufacturer’s Stated Benefits: Modes: Cool, Heat, Dry, Fan, Auto Built-in condensate pump Branch duct capability Outside air intake Sleep Mode Power Saving Mode Washable filter with on-unit filter maintenance indicator System diagnostics Indoor unit features a modern, flush-mount, white grille

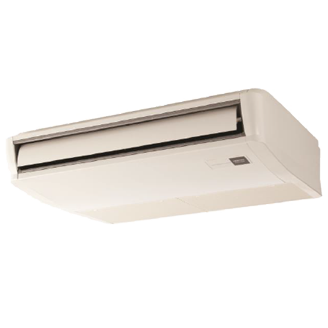

Toshiba Carrier Underceiling Indoor Unit

Model Family: RAVCT2
Purpose: Heat & Cool
Zone Capability: Single zone
Efficiency SEER2: Dependent upon outdoor unit pairing
Efficiency EER2: Dependent upon outdoor unit pairing
Efficiency HSPF2: Dependent upon outdoor unit pairing
Matching Outdoor Unit: Single-Zone: RAVAT2
Matching Outdoor Unit: Multi-Zone:
Energy Star Rated: Select sizes ENERGY STAR® certified
Refrigerant Type: Puron
Number of Fan Speeds: Three indoor unit fan speeds
Sound Level: As low as 28 decibels
Wireless Remote: Yes
Factory Warranty Parts: 10-year parts limited warranty to the original purchasing owner upon timely registration or Consumer Choice Warranty
Manufacturer’s Stated Benefits: Modes: Cool, Heat, Dry, Fan, Auto Power Saving Mode Auto Louver Mode Outside air intake Sleep Mode Filter maintenance indicator System diagnostics Indoor coil freeze protection Modern, ceiling hugging unit in white

Toshiba Carrier Ducted Indoor Unit

Model Family: RAVBT2
Purpose: Heat & Cool
Zone Capability: Single zone
Efficiency SEER2: Dependent upon outdoor unit pairing
Efficiency EER2: Dependent upon outdoor unit pairing
Efficiency HSPF2: Dependent upon outdoor unit pairing
Matching Outdoor Unit: Single-Zone: RAVAT2
Matching Outdoor Unit: Multi-Zone:
Energy Star Rated: Select sizes ENERGY STAR® qualified
Refrigerant Type: Puron
Number of Fan Speeds: 3 Fan Speeds
Sound Level: As low as 25 decibels
Wireless Remote: Yes
Factory Warranty Parts: 10-year parts limited warranty to the original purchasing owner upon timely registration or Consumer Choice Warranty
Manufacturer’s Stated Benefits: Modes: Cool, Heat, Dry, Fan, Auto Rear or bottom return Outside air intake Built-in condensate lift pump Unit cabinet is constructed of galvanized steel. The cabinet is fully insulated for improved thermal and acoustic performance.

Duct Free Systems
